Next.js Full-Stack Capture

What you'll have

By the end of this page, your Next.js app captures server and client network requests and shows them together in the Hakka overlay, tagged by runtime. No proxy, no CA cert, no cloud account.

hakka-node’s /next subpath instruments the Next.js server runtime — Server Components, Route Handlers, and Server Actions — and streams captures to the same bridge hub the browser overlay connects to. Server and client requests appear in one UI, tagged by runtime.

Stable

Try it in two minutes

The repo ships a working example with eleven traffic generators and a checklist, so you can see server and client capture side by side before wiring anything into your own app.

1. Clone the repo and run the example:

   Terminal

   git clone https://github.com/ansumanshah/hakka.git
   cd hakka/examples/next-fullstack
   npm install
   npm run dev

   Use npm here, not bun

   bun install lays the example’s file: workspace dependencies out as per-file symlinks, and Turbopack rejects a symlinked package.json. Run npm install for this example even if bun is your default elsewhere.

2. Open http://localhost:3000. The page’s own Server Component fetches api.github.com during render, so a request is already waiting for you before you click anything.

3. Tap the round button in the bottom-right corner. That opens the inspector.

Generate traffic

Eleven buttons fire real requests through the dev server. Core flow is the everyday shape; Push it further hits the edges the everyday shape doesn’t reach.

Core flow

Generator	Call	What it shows
Fetch products	GET /api/products	Client calls a route handler, which makes its own upstream call: one click, two hops, tagged client then server.
Fetch cached route	GET /api/cached	A hand-stamped x-vercel-cache header cycling HIT, HIT, STALE, so the cache-status badge has something to show without real Vercel infra.
Run server action	pingServerAction()	A Server Action with no route handler in between, tagged server-action. It makes its own outbound fetch, so its trace gets a child hop too.

Push it further

Generator	Call	What it shows
Fail request	GET /api/demo/fail	Always 500, the chili severity stripe.
Not found	GET /api/demo/missing	Always 404, the turmeric stripe.
Slow request	GET /api/demo/slow	About 2.5 seconds. Open it while it runs and read the timing waterfall phase by phase.
POST with a body	POST /api/demo/echo	Sends a small JSON payload and gets it echoed back with a server timestamp.
Delete	DELETE /api/demo/echo	Same URL as the POST above, a different method chip on the same row.
Large response	GET /api/demo/large	About 100KB of JSON, 1,250 rows. Worth opening as a tree instead of a wall of text.
Burst	8 requests at once, Promise.allSettled	A mix of GET, POST, DELETE, a 404, and a 500, fired together. Good fodder for the Stats panel.
Emit logs	console.log / warn / error	Writes one line at each level so the Logs tab has real content to filter.

Work through the checklist

The page ends with an eight-step checklist. Each step uses something you just generated, and points at the real button or tab:

1. Open the inspector. Tap the round button in the bottom-right corner.
2. Open Filters, then Runtime. Pick Server to see only this page’s outbound calls, then Client for the browser’s.
3. Run Slow request, open it, and read the timing waterfall: DNS through download, phase by phase.
4. Open any request and tap Mock this, a button in the Detail action bar. Run the same generator again and the row shows the mock, not a real call.
5. Open Rules > Throttle > Slow 3G. Run Fetch products again and watch the duration climb.
6. Open Rules > Breakpoints, and add one for /api/demo. Run any generator above and it pauses before the network.
7. Run Emit logs, then open the Logs tab: an info line, a warning, and an error, side by side.
8. Open a request and tap Copy as agent context. Paste the bundle into an AI coding agent.

Install

npm

Terminal

npm install -D hakka-node
npm install hakka-browser

pnpm

Terminal

pnpm add -D hakka-node
pnpm add hakka-browser

yarn

Terminal

yarn add --dev hakka-node
yarn add hakka-browser

bun

Terminal

bun add --dev hakka-node
bun add hakka-browser

Setup

Next 15.3+

1. Create instrumentation.ts in your project root:

   instrumentation.ts

   export { register } from 'hakka-node/next'

2. Create instrumentation-client.ts in your project root:

   instrumentation-client.ts

   import 'hakka-node/next/client'

3. Verify it works — run next dev, open your app, make any request (page load counts). The Hakka overlay (bottom-right trigger) shows both server and client requests, each tagged server or client.

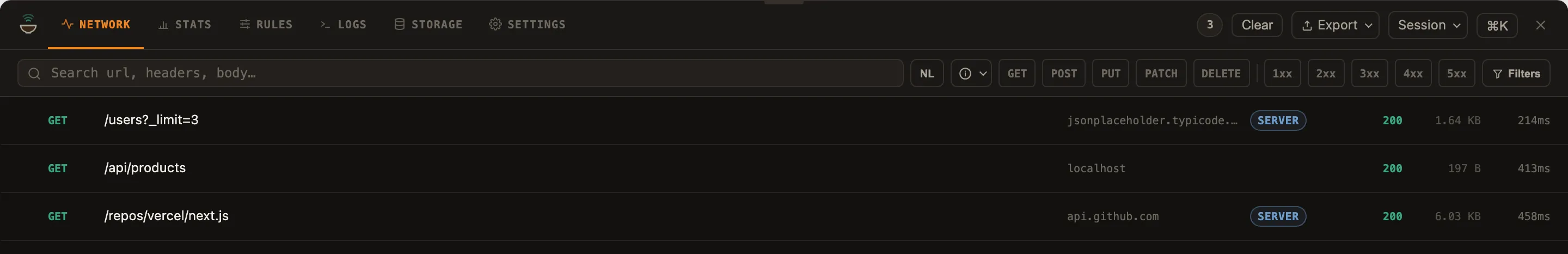

One user action, the whole chain: the browser’s /api/products call, the route handler’s downstream fetch, and the Server Component’s own fetch — in one list, each tagged with the runtime it ran on.

Older Next (no instrumentation-client.ts)

If your Next.js version doesn’t support instrumentation-client.ts, drop a small client component into your root layout instead. The instrumentation.ts server file is identical to the above.

components/HakkaOverlay.tsx

'use client'
import { useEffect } from 'react'
import { startHakkaClient } from 'hakka-node/next/client'

export function HakkaOverlay() {
  useEffect(() => startHakkaClient(), [])
  return null
}

Then render <HakkaOverlay /> inside your root layout.

What Hakka captures

Traffic	Captured	Body
fetch — Server Components, Route Handlers, Server Actions	Yes	Full request + response body
Node http/https — axios, got, node-fetch, any SDK	Yes	Request + headers only; response body is NOT captured
Edge runtime (runtime: 'edge')	fetch only	Full body
Non-HTTP (Postgres/Prisma over TCP)	No	—

Note

Node http/https response bodies are deliberately not captured. Attaching a data listener can flip a paused stream into flowing mode and corrupt the caller’s read. Full bodies are available for fetch. This matches how OpenTelemetry’s http instrumentation behaves by default.

Embedded bridge

register starts a bridge hub inside the Next dev server process by default (embedBridge: true). The browser overlay connects to the same hub at ws://localhost:8989. If the port is already in use — another dev worker or a standalone hub — the embedded start is skipped and the client connects to the existing one.

See Bridge overview for how the hub works.

Dev-only

register is a no-op in production (NODE_ENV === 'production') unless you override runtime explicitly. The client side (hakka-node/next/client) also self-skips in production and on the server — it runs only in a browser in dev.

Options

Pass options to register for custom behavior:

instrumentation.ts

import { register as base } from 'hakka-node/next'

export const register = () =>
  base({
    runtime: 'server', // 'server' (default) | 'edge'
    captureHttp: true, // patch node http/https. No-op on edge runtime.
    captureFetch: true, // patch globalThis.fetch
    embedBridge: true, // run the hub in-process. false → use npx hakka-bridge separately.
    bridgeUrl: 'ws://localhost:8989',
    maxBodySize: 262144, // bytes; default 256 KB
    // Replaces the core default list entirely — it is not merged with it.
    // Spread the defaults explicitly to keep them alongside your own additions.
    redactHeaders: ['authorization', 'proxy-authorization', 'cookie', 'set-cookie', 'x-custom'],
  })

Option	Type	Default	Description
runtime	'server' | 'edge'	'server'	Tag applied to every captured record
captureHttp	boolean	true	Patch Node http/https. No-op on edge.
captureFetch	boolean	true	Patch globalThis.fetch
embedBridge	boolean	true	Host the bridge hub in-process
bridgeUrl	string	ws://localhost:8989	Hub WebSocket URL
maxBodySize	number	262144	Max captured body in bytes
redactHeaders	string[]	core defaults	Sensitive header names to redact — replaces the core default list rather than merging with it

Edge runtime

For routes running on the edge runtime, pass runtime: 'edge'. captureHttp is automatically disabled (no Node http module on edge):

instrumentation.ts

import { register as base } from 'hakka-node/next'

export const register = async () => {
  if (process.env.NEXT_RUNTIME === 'edge') {
    const { startServerCapture } = await import('hakka-node/next/server')
    startServerCapture({ runtime: 'edge', captureHttp: false, embedBridge: false })
  }
}

The default register export handles this automatically — NEXT_RUNTIME === 'edge' triggers fetch-only capture with no embedded hub.

Runtime filter

The overlay runtime filter lets you isolate server, client, or edge traffic. Requests captured by hakka-node/next carry the tag set in runtime (default 'server'); browser traffic carries 'client'.

Request Insights (span waterfall)

Passing traceSpans: true to register/startServerCapture bridges Next’s own OpenTelemetry request-tree spans (BaseServer.handleRequest, AppRouteRouteHandlers.runHandler, Render.getServerSideProps, …) into the inspector as FrameworkSpan records, so a request’s server-side waterfall shows up alongside its network captures — without hakka-node shipping any OTel SDK code itself. Opt-in; zero cost when off. hakka-node/next/server’s startServerCapture defaults it to true in development.

instrumentation.ts

import { registerOTel } from '@vercel/otel'
import { hakkaSpanProcessor } from 'hakka-node'
import { register as base } from 'hakka-node/next'

export async function register() {
  registerOTel({ spanProcessors: [hakkaSpanProcessor()] })
  await base({ traceSpans: true })
}

Why two attach paths exist. @opentelemetry/sdk-trace-base 1.x lets a processor attach to an already-registered provider via provider.addSpanProcessor(); 2.x removed that method — processors are constructor-only there. hakkaSpanProcessor() is the 2.x-safe path: you construct it and hand it to your SDK’s own processor list (registerOTel({ spanProcessors: [...] }) for @vercel/otel, or the equivalent for any other SDK). A duck-typed attach() fallback also runs automatically from enableTraceSpans() for 1.x setups that never call hakkaSpanProcessor() explicitly — it reads trace.getTracerProvider(), unwraps one ProxyTracerProvider.getDelegate() layer (the standard registration path always wraps the real provider), and calls addSpanProcessor if present. If a hakkaSpanProcessor() instance already exists in the process, the fallback no-ops rather than installing a second processor that would double-emit every span.

@opentelemetry/api is an optional peer. Nothing in spanProcessor.ts imports it statically — only via a dynamic import() inside the 1.x fallback — so a consumer who never calls enableTraceSpans() needs nothing installed and pays zero cost. @opentelemetry/sdk-trace-base (which declares the real SpanProcessor/ReadableSpan types) is never imported at all, even as a type; the module declares a minimal structural subset instead and duck-types against whatever the runtime hands back.

Request kind classification. Root spans (no parent) get a requestKind of 'rsc', 'route-handler', 'document', or 'server-action', derived from (in priority order) an inbound header hint (next-action / rsc: 1, read at the same point trace propagation reads the incoming trace header) and Next’s documented next.rsc span attribute. The AppRender.fetch span type is dropped at the source — it’s the exact same outbound fetch hakka-core’s own fetch interceptor already captures with full headers/body, so emitting both would draw one operation twice.

Next steps

Bridge overviewHow the hub routes captures between server and browser.

MCP overviewExpose the live capture store to AI agents over MCP.

MockingIntercept and stub responses without touching server code.

Production safetyGuard rails for keeping Hakka out of production builds.
